Model Whirlpool 1245^3A GAS RANGE – Common Parts & Diagrams
08 - SECTION

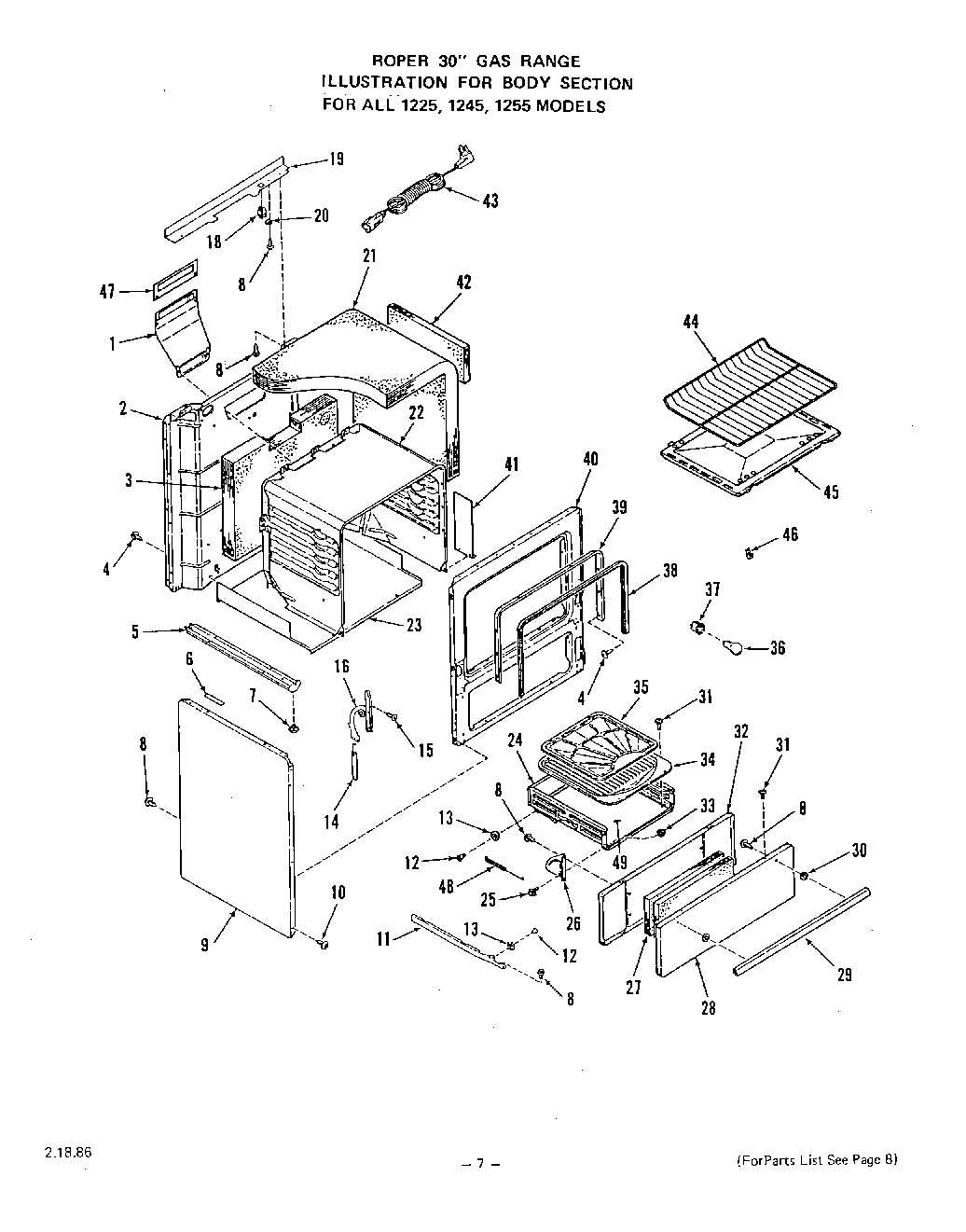

06 - BODY
05 - SECTION

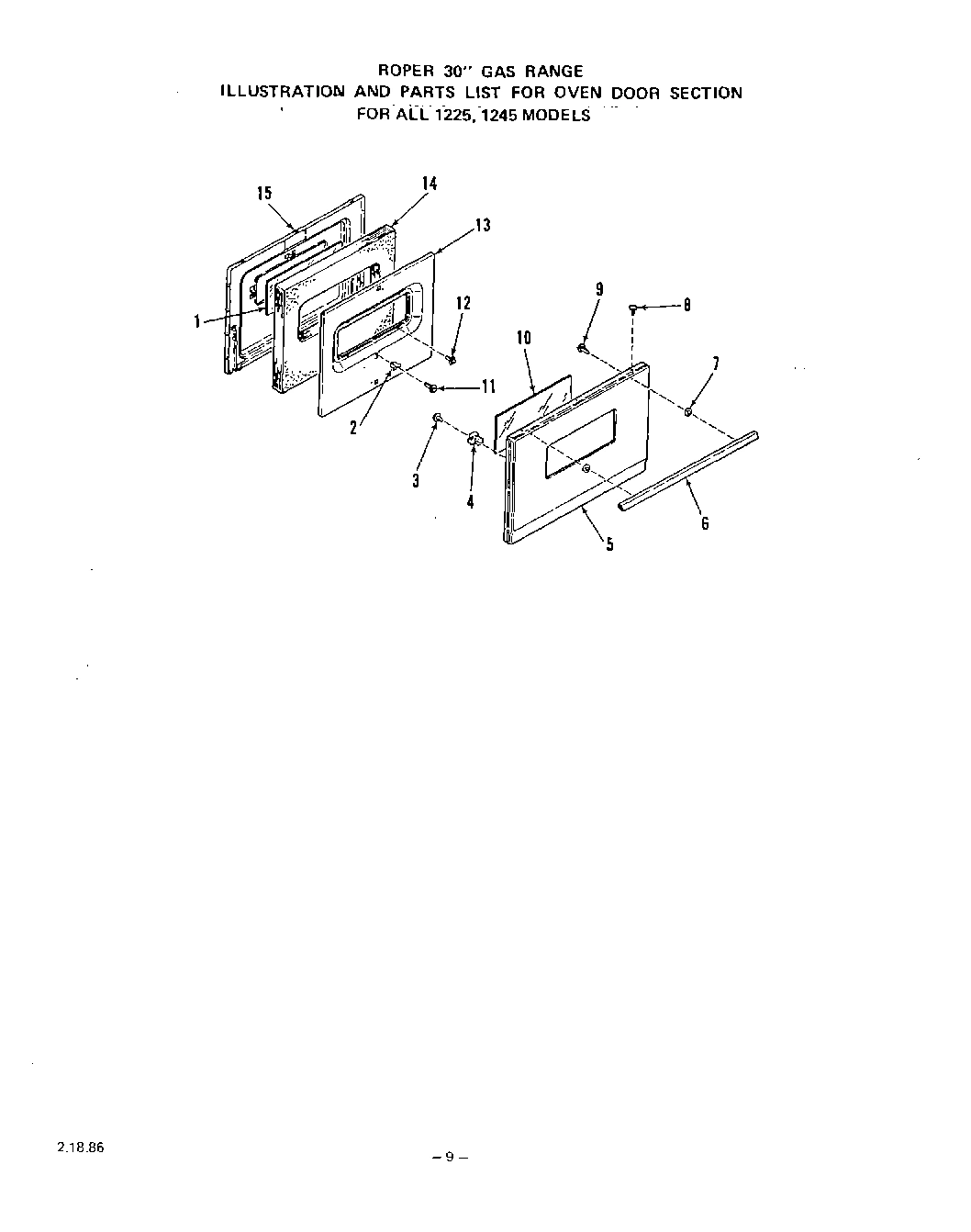

07 - OVEN DOOR

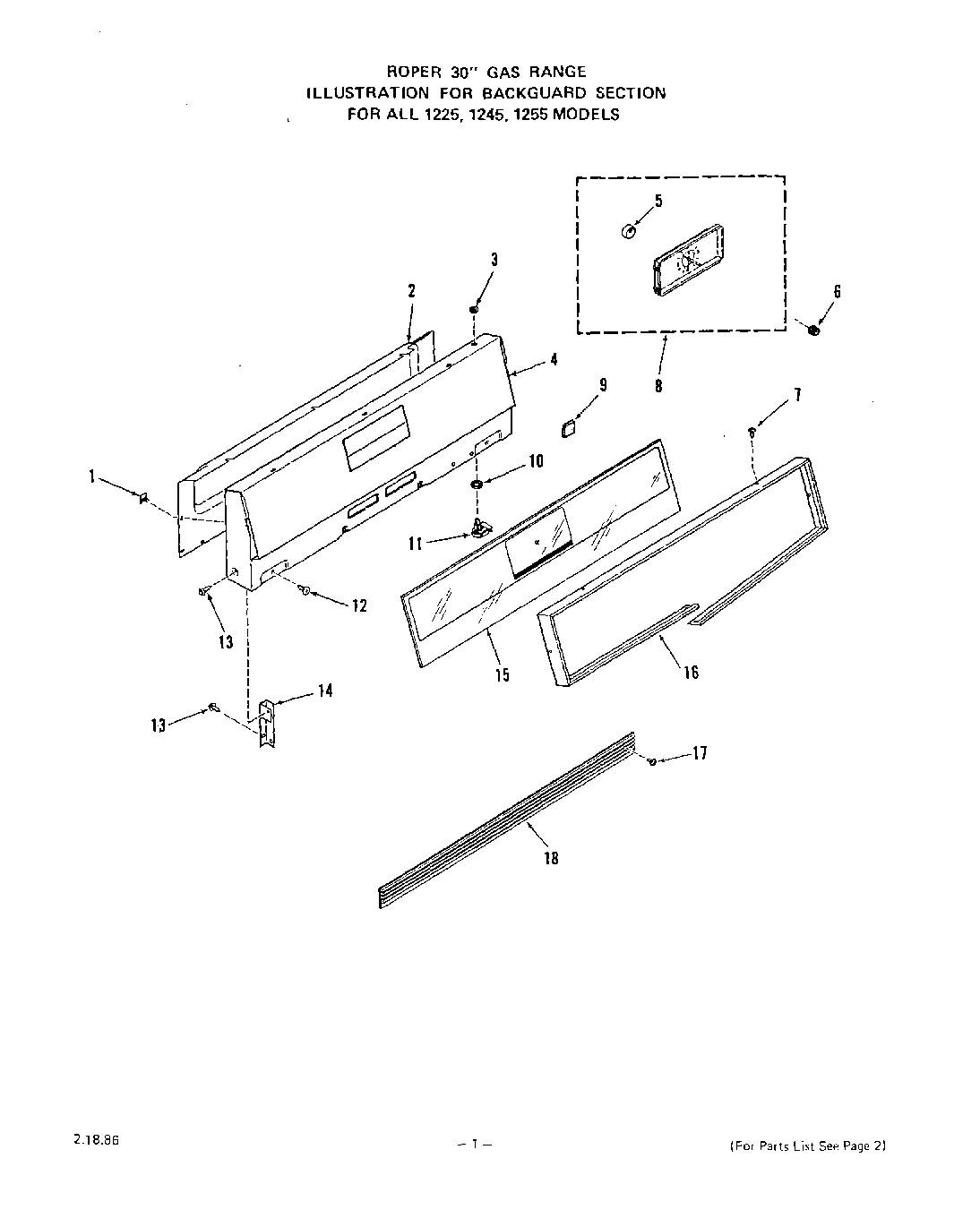

01 - BACKGUARD

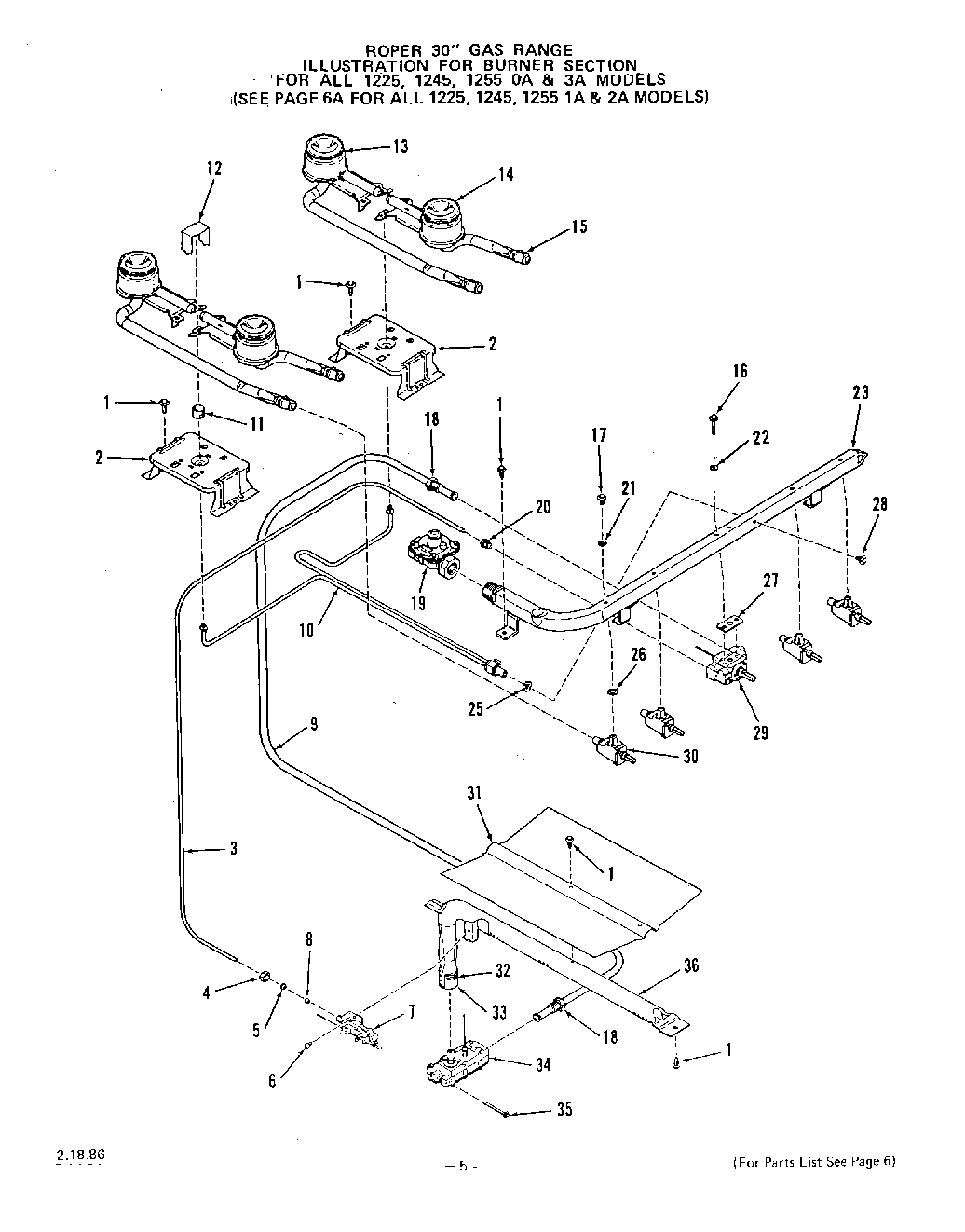

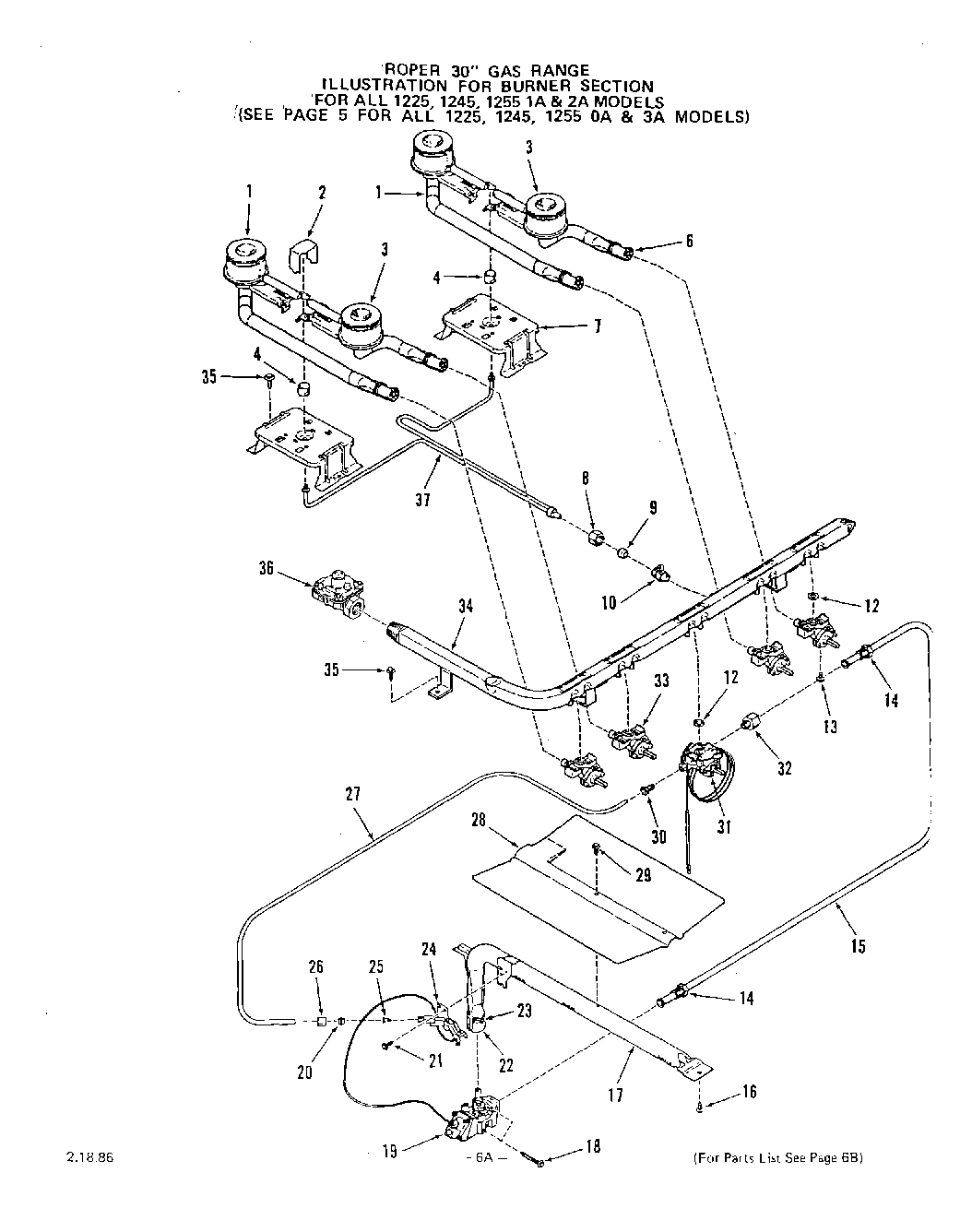

04 - BURNER

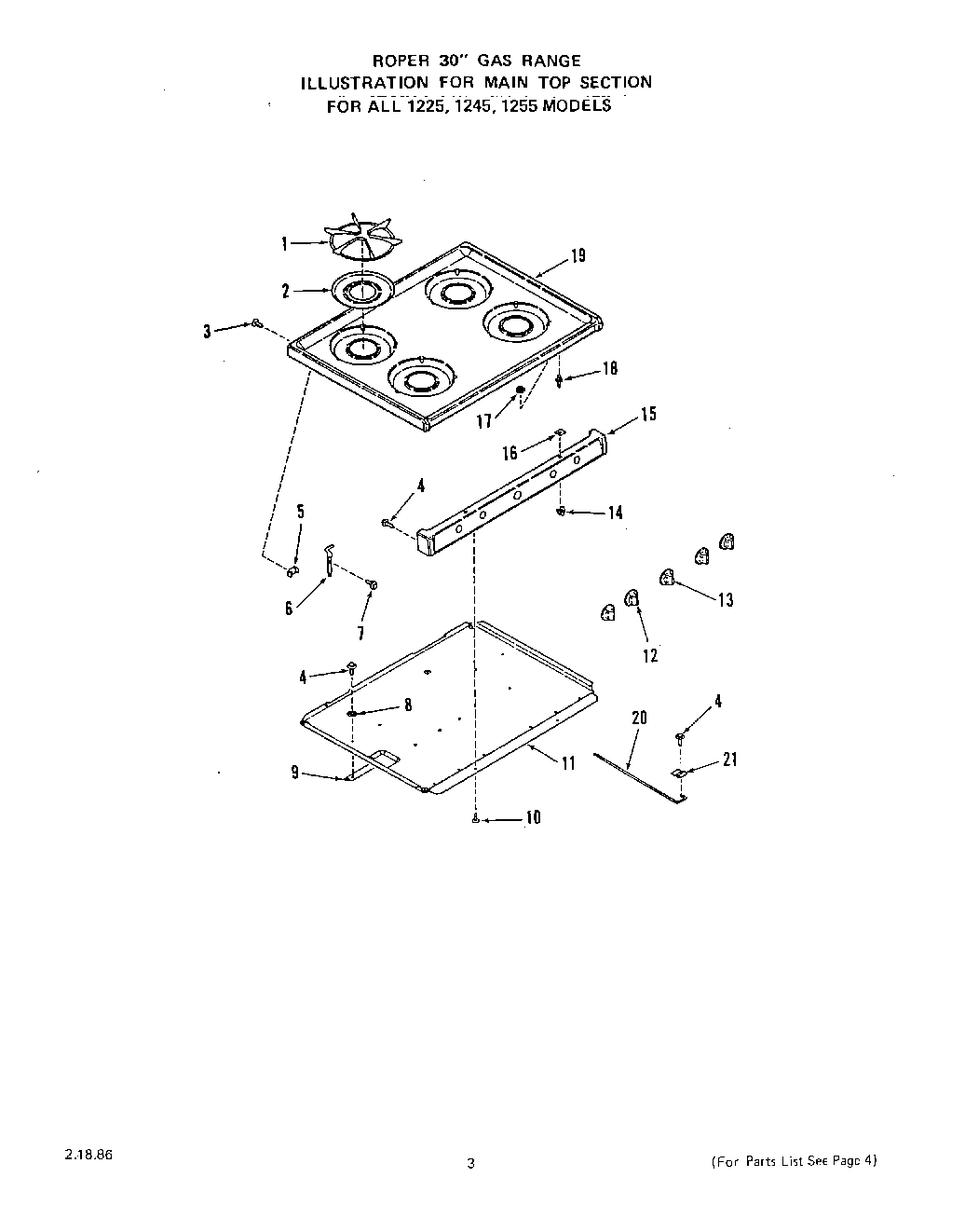

02 - MAIN TOP

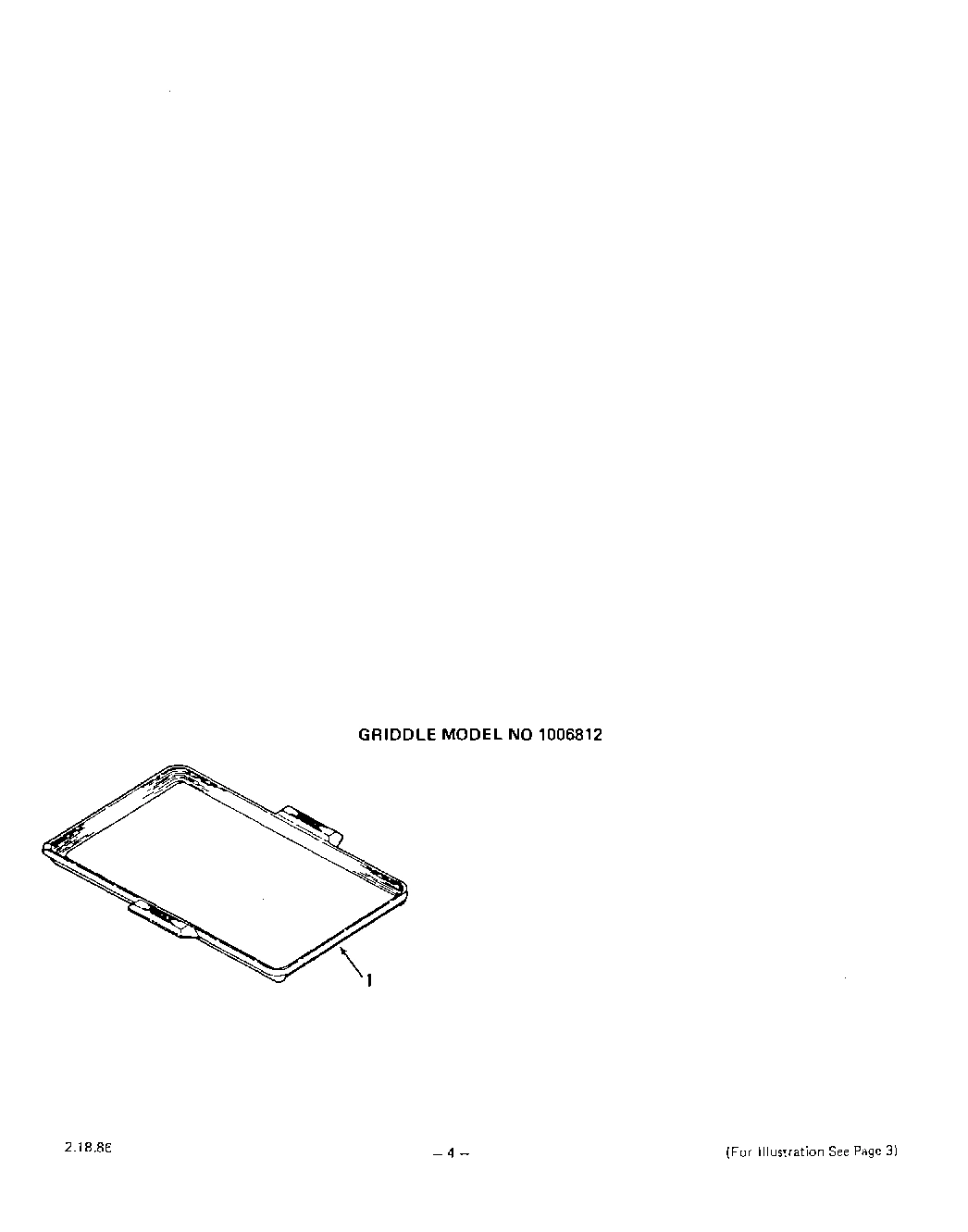

03 - GRIDDLE

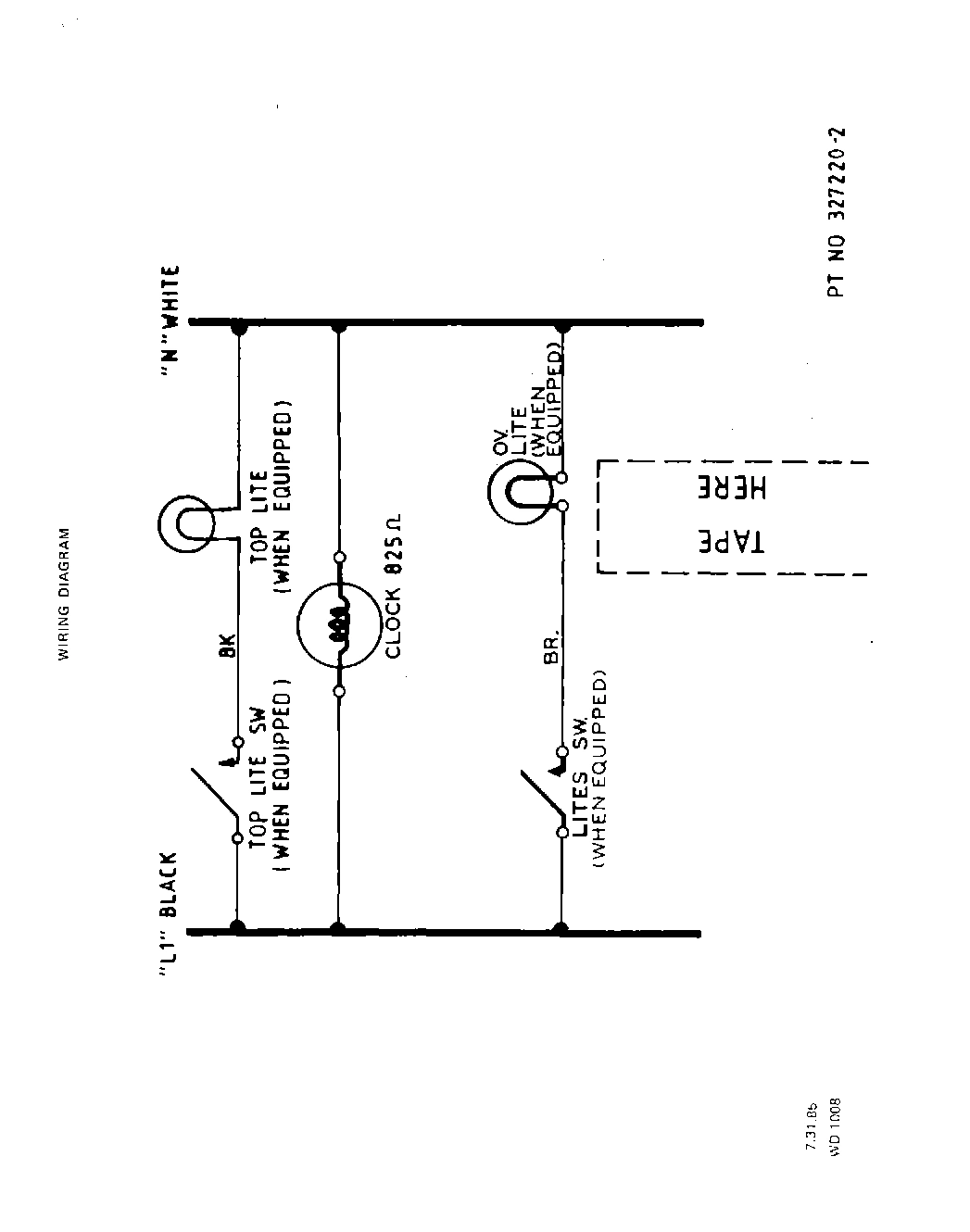

10 - SECTION
Common parts from model Whirlpool 1245^3A GAS RANGE
1
inner glass-oven door WPL 326010 Contact Us For Availability
1
Flue Deflector WPL 327079 Contact Us For Availability
1
Set-On Griddle WPL 289671 Contact Us For Availability
1
Clip WPL 70588 Contact Us For Availability
1
Top Grate (4 Req) WPL 316786 Contact Us For Availability
2
Spacer WPL 327269 Contact Us For Availability
2
Support-Top Burner WPL 327071 Contact Us For Availability
2
Back-Main WPL 327087 Contact Us For Availability
2
Wire Cover-Backguard WPL 320767 Contact Us For Availability
2
Insert Pan (4 Req) All 1255 Models WPL 322888 Contact Us For Availability
3
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
3
Tubing 3/16`` WPL 322446 Contact Us For Availability
3
Insulation-Oven Back WPL 328142 Contact Us For Availability
3
Knurled Nut WPL 87403 Contact Us For Availability
4
Retainer-Door Glass (4 Req) WPL 299592 Contact Us For Availability
4
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
4
Compression Nut 3/16`` WPL 65712 Contact Us For Availability
4
Crosstie WPL 328654 Contact Us For Availability
5
White WPL 325968 Contact Us For Availability
5
Golden Wheat WPL 325969 Contact Us For Availability
5
Almond WPL 325970 Contact Us For Availability
5
Avocado WPL 325971 Contact Us For Availability
5
Coffee WPL 325972 Contact Us For Availability
5
Front Panel-Oven Door WPL ARI7802A83 Contact Us For Availability
5
Compression Ball Sleeve 3/16`` WPL 65711 Contact Us For Availability
5
Base w/Levelers (Lt. or Rt.) WPL 326050 Contact Us For Availability
5
Clock Motor WPL 283296 Contact Us For Availability
5
Bracket-Hinge (Lt. or Rt.) WPL 327403 Contact Us For Availability
6
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
6
Spacer-Main Top WPL 326914 Contact Us For Availability
6
Clock Knob WPL 294810 Contact Us For Availability
6
Right WPL 320921 Contact Us For Availability
6
Left WPL 320922 Contact Us For Availability
6
Hinge-Main Top WPL ARI7784A18 Contact Us For Availability
7
Pilot Only (Inc`s. 8) WPL 318486 Contact Us For Availability
7
Leg Leveler (4 Req) WPL 326052 Contact Us For Availability
7
Screw 6-20x3/8`` WPL 327621 Contact Us For Availability
7
Screw 10-32 x 3/4`` WPL 321162 Contact Us For Availability
8
Compression Nut 1/4`` WPL 4825 Contact Us For Availability
8
Orifice Cup Only (For 7) WPL 318485 Contact Us For Availability
8
Clock (Inc`s. 5) WPL 327882 Contact Us For Availability
8
Washer WPL 106462 Contact Us For Availability
9
Compression Ball Sleeve 1/4`` WPL 867 Contact Us For Availability
9
Tubing 3/8`` WPL 295037 Contact Us For Availability
9
White WPL 326055 Contact Us For Availability
9
Coffee WPL 326056 Contact Us For Availability
9
Avocado WPL 326057 Contact Us For Availability
9
Wheat WPL 326058 Contact Us For Availability
9
Almond WPL 326059 Contact Us For Availability
9
Platinum WPL 327940 Contact Us For Availability
9
Body Side (Lt. or Rt.) WPL ARI7789A52 Contact Us For Availability
9
Spacer-Backguard Glass (2 Req) WPL 322302 Contact Us For Availability
9
Front WPL 327705 Contact Us For Availability
9
Rear WPL 329158 Contact Us For Availability
9
Stiffener-Burner Box Bottom WPL ARI7785A17 Contact Us For Availability
10
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
10
Outer Glass-Oven Door WPL 326090 Contact Us For Availability
10
Filter-Top Pilot WPL 290610 Contact Us For Availability
10
Pilot w/Filter WPL 323912 Contact Us For Availability
10
Pal Nut 3/8-27 WPL 236129 Contact Us For Availability
11
Cup-Pilot (Lt. or Rt.) WPL 308292 Contact Us For Availability
11
Right WPL 296327 Contact Us For Availability
11
Broiler Drawer Guide (Inc`s. 12, 13) WPL ARI7790A94 Contact Us For Availability
11
Push Switch-Oven Light WPL 298793 Contact Us For Availability
11
All 1225, 1245, 1255 OA & 1A Models WPL 327069 Contact Us For Availability
11
All 1225, 1245, 1255 2A & 3A Models WPL 331740 Contact Us For Availability
11
Bottom-Burner Box WPL ARI7786A90 Contact Us For Availability
12
Screw 10-32 x 17/32`` WPL 104520 Contact Us For Availability
12
Shield-Top Pilot (Lt. or Rt.) WPL 296183 Contact Us For Availability
12
Gasket (5 Req. for Keys 31 & 33) WPL 288186 Contact Us For Availability
12
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
12
Shoulder Rivet WPL 70275 Contact Us For Availability
12
Knob-Gas Valve (4 Req) WPL 327485 Contact Us For Availability
13
Insulation Retainer-Oven Door WPL 325996 Contact Us For Availability
13
Rear Top Burner (Rt. or Lt.) - Inc`s. 15 WPL 327075 Contact Us For Availability
13
Bolt 10-24x5/16`` (10 Req) WPL 330149 Contact Us For Availability
13
Roller WPL 69006 Contact Us For Availability
13
Knob-Thermostat WPL 322981 Contact Us For Availability
14
Insulation WPL 325999 Contact Us For Availability
14
Front Top Burner (Rt. or Lt.) - Inc`s. 15 WPL 327074 Contact Us For Availability
14
Spring-Oven Door WPL 326962 Contact Us For Availability
14
Right WPL 327106 Contact Us For Availability
14
Left WPL 327107 Contact Us For Availability
14
Support-Backguard WPL ARI7783A50 Contact Us For Availability
14
Catch (2 Req) WPL 24667 Contact Us For Availability
15
All 1245 Models WPL 325942 Contact Us For Availability
15
All 12250A & 12251A Models WPL 327189 Contact Us For Availability
15
All 12252A & 12253A Models WPL 331743 Contact Us For Availability
15
Lining-Oven Door WPL ARI7803A79 Contact Us For Availability
15
Air Shutter (4 Req) WPL 327198 Contact Us For Availability
15
Tubing 3/8`` (Thmst. to Cont. Valve) WPL 315807 Contact Us For Availability
15
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
15
Glass-Backguard WPL 322303 Contact Us For Availability
15
White WPL 327451 Contact Us For Availability
15
Coffee WPL 327452 Contact Us For Availability
15
Avocado WPL 327454 Contact Us For Availability
15
Manifold Panel (Golden Wheat) WPL 327456 Contact Us For Availability
15
Almond WPL 327457 Contact Us For Availability
15
Platinum WPL 327843 Contact Us For Availability
15
Toast WPL 327844 Contact Us For Availability
15
Manifold Panel WPL ARI7787A64 Contact Us For Availability
16
Mounting Screw (Inc`s. 22) WPL 318478 Contact Us For Availability
16
Right WPL 329653 Contact Us For Availability
16
Left WPL 329654 Contact Us For Availability
16
Hinge-Oven Door WPL ARI7791A43 Contact Us For Availability
16
Bezel-Backguard WPL 308007 Contact Us For Availability
16
Washer WPL 310218 Contact Us For Availability
17
Burner-Oven (Inc. Keys 22, 23 & 28) WPL 303398 Contact Us For Availability
17
Mounting Screw (Inc`s. 21) WPL 311455 Contact Us For Availability
17
Screw 6-20x3/8`` WPL 329382 Contact Us For Availability
17
Keps Nut 8-32 WPL 239764 Contact Us For Availability
18
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
18
Disconnect WPL 232150 Contact Us For Availability
18
Trim WPL 329236 Contact Us For Availability
18
Strike (2 Req) WPL 299784 Contact Us For Availability
19
Control Valve (Inc. Keys 24 & 25) WPL 324050 Contact Us For Availability
19
Pressure Regulator WPL 324528 Contact Us For Availability
19
Wire Cover Bottom-Backguard WPL 327251 Contact Us For Availability
19
White WPL 328907 Contact Us For Availability
19
Coffee WPL 328908 Contact Us For Availability
19
Avocado WPL 328909 Contact Us For Availability
19
Golden Wheat WPL 328910 Contact Us For Availability
19
Almond WPL 328911 Contact Us For Availability
19
Platinum WPL 328913 Contact Us For Availability
19
Toast WPL 328914 Contact Us For Availability
19
Main Top WPL ARI7788A46 Contact Us For Availability
20
Loxit Nut 3/16`` WPL 79673 Contact Us For Availability
20
Clip WPL 106767 Contact Us For Availability
20
Support Rod-Main Top WPL 326066 Contact Us For Availability
21
Gasket WPL 304241 Contact Us For Availability
21
Insulation-Oven Top & Sides (1 Piece) WPL 326040 Contact Us For Availability
21
Clamp-Support Rod WPL 326348 Contact Us For Availability
22
Air Shutter WPL 239267 Contact Us For Availability
22
Gasket WPL 318658 Contact Us For Availability
22
All 1245 & 1255 Models WPL 324957 Contact Us For Availability
22
All 12250A & 12251A Models WPL 324958 Contact Us For Availability
22
All 12252A & 12253A Models WPL 331586 Contact Us For Availability
22
Oven Body WPL ARI7792A22 Contact Us For Availability
23
Adjustment Screw-Air Shutter WPL 239268 Contact Us For Availability
23
Manifold Pipe WPL 327088 Contact Us For Availability
23
Bottom-Main WPL 327053 Contact Us For Availability
24
Pilot-Oven (Inc. Key 25) WPL 294528 Contact Us For Availability
24
All 1245, 1225, 1255 0A & 1A Models WPL 330100 Contact Us For Availability
24
All 1225, 1245, 1255 2A & 3A Models WPL 331566 Contact Us For Availability
24
Broiler Drawer (Inc`s. 12, 13) WPL ARI7793A17 Contact Us For Availability
25
Orifice Cup WPL 113117 Contact Us For Availability
25
Gasket WPL 323913 Contact Us For Availability
25
Shoulder Bolt WPL 329271 Contact Us For Availability
26
Silicone Rubber Gasket (For 30) WPL 313563 Contact Us For Availability
26
Right WPL 327482 Contact Us For Availability
26
Left WPL 327483 Contact Us For Availability
26
Hinge-Broiler Door WPL ARI7794A99 Contact Us For Availability
27
Tubing 3/16`` (Thermostat to Pilot) WPL 322447 Contact Us For Availability
27
Silicone Rubber Gasket (For 29) WPL 318657 Contact Us For Availability
28
Mounting Screw WPL 323914 Contact Us For Availability
28
White WPL 326287 Contact Us For Availability
28
Coffee WPL 326288 Contact Us For Availability
28
Avocado WPL 326289 Contact Us For Availability
28
Wheat WPL 326290 Contact Us For Availability
28
Almond WPL 326291 Contact Us For Availability
28
Platinum WPL 327941 Contact Us For Availability
28
Toast WPL 327942 Contact Us For Availability
28
Panel-Broiler Door WPL ARI7795A23 Contact Us For Availability
29
Handle WPL 292240 Contact Us For Availability
29
Oven Thermostat (Inc`s. 27) WPL 323467 Contact Us For Availability
30
Spacer WPL 302343 Contact Us For Availability
30
Gas Valve-4 Req. (Inc`s. 17, 21, 26) WPL 324912 Contact Us For Availability
31
Baffle - Oven Burner WPL 329316 Contact Us For Availability
31
Thermostat-Inc. Keys 12 & 32) WPL 302727 Contact Us For Availability
32
Fitting WPL 303503 Contact Us For Availability
32
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
32
All 1225, 1245, 1255 0A & 1A Models WPL 327060 Contact Us For Availability
32
All 1225, 1245, 1255 2A & 3A Models WPL 331567 Contact Us For Availability
32
Lining-Broiler Door WPL ARI7796A40 Contact Us For Availability
33
Gas Valve (4 Req-Inc. Key 12) WPL 330148 Contact Us For Availability
33
Air Shutter WPL 312988 Contact Us For Availability
33
Nut-Keps 10-24 WPL 74056 Contact Us For Availability
34
Manifold Pipe WPL 330147 Contact Us For Availability
34
Control Valve (Inc`s. 7,8) WPL 323680 Contact Us For Availability
34
All 1225, 1245, 1255 0A & 1A Models WPL 290171 Contact Us For Availability
34
All 1225, 1245, 1255 2A & 3A Models WPL 331593 Contact Us For Availability
34
Pan-Broiler WPL ARI7797A76 Contact Us For Availability
35
Screw 10-32 x 2`` WPL 323296 Contact Us For Availability
35
All 1225, 1245 WPL 313071 Contact Us For Availability
35
WPL 331588 WPL 331588 Contact Us For Availability
35
WPL ARI7798A66 WPL ARI7798A66 Contact Us For Availability
36
Oven Burner (Inc`s. 31, 32,33) WPL 319255 Contact Us For Availability
36
WPL 111257 WPL 111257 Contact Us For Availability
37
Pilot Tube (Inc. Keys 8 & 9) WPL 325683 Contact Us For Availability
37
WPL 295974 WPL 295974 Contact Us For Availability
38
WPL 326047 WPL 326047 Contact Us For Availability
39
WPL 327875 WPL 327875 Contact Us For Availability
40
WPL 326042 WPL 326042 Contact Us For Availability
40
WPL 331584 WPL 331584 Contact Us For Availability
40
WPL ARI7799A93 WPL ARI7799A93 Contact Us For Availability
41
WPL 328984 WPL 328984 Contact Us For Availability
43
WPL 235822 WPL 235822 Contact Us For Availability
44
WPL 326068 WPL 326068 Contact Us For Availability
45
WPL 327083 WPL 327083 Contact Us For Availability
45
WPL 327084 WPL 327084 Contact Us For Availability
45
WPL 331539 WPL 331539 Contact Us For Availability
45
WPL ARI7800A75 WPL ARI7800A75 Contact Us For Availability
46
WPL 115533 WPL 115533 Contact Us For Availability
47
WPL 329314 WPL 329314 Contact Us For Availability
48
WPL 327481 WPL 327481 Contact Us For Availability
49
WPL 329862 WPL 329862 Contact Us For Availability
49
WPL 331554 WPL 331554 Contact Us For Availability
49
WPL ARI7801A79 WPL ARI7801A79 Contact Us For Availability
× ![]()
